Features
Unmatched Render Performance
Extreme Power in 2U

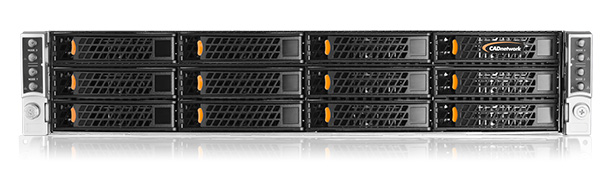

The Rendercluster R60 is extremely powerful with four node modules in one 2U chassis.
Four nodes with 2x Intel® Xeon® E5 processors each
Two Intel Xeon processors with up to 56 cores power each compute-module of the R60 and provide breathtaking processing power for 3D renderings.
Technical Data
- Processor per Node
- Graphic
- Memory per Node
- Storage
- Network
- Connectors
- Remote management
- Power supply
- Dimensions
Rendercluster R60
-
4 Nodes with each
2x Intel® Xeon™ SP Scalable Processor Skylake
up to 28 Cores
-
ASPEED AST2400 32MB
1x D-Sub (VGA)
-
4 Nodes with each
1TB DDR4 2400 MHz ECC
16 Slots
-
4 Nodes with each
3x SSD/HDD SATA 6GB/s Hot-Swap
-
4 Nodes with each
2x 10GbE LAN
1x Management LAN
-
2x USB 3.0
2x 10GbE LAN
1x Management LAN
1x D-Sub (VGA)
-
Wake-on-LAN, Remotedesktop
(IPMI) KVM Remote Management
Power-On, Power-Off, Reset, Diagnose
virtual drives (Mapping)
Keyboard/Mouse/Display over LAN
-
2x 2130W Power supply 80+ Platinum
100/240V, 50/60Hz
redundant power supply
-
2HE Case
438 x 87 x 771 mm WHD
incl. Rack Rails
R60 Node Technical Specification.pdf
