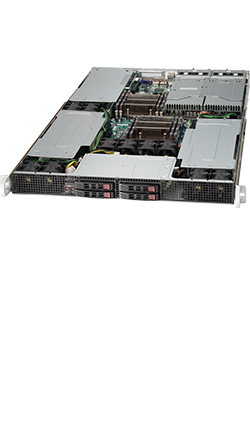

GPU Rackserver ProViz™ G13

Der GPU Rackserver ProViz G13 ist der perfekte Server für die Realisierung von GPU/CPU Clustern mit geringem Platzbedarf im Serverschrank. Der Rackserver G13 bietet die Möglichkeit bis zu 3 GPU und MIC Boards unterzubringen.

Anzahl der unterstützten GPUs:
NVIDIA TeslaNVIDIA TeslaNVIDIA Tesla



Jetzt Konfigurieren und Kaufen!





Specifications



  • Processor
  • GPU MIC Support
  • Graphics
  • Memory max.
  • Storage
  • Network
  • Remotemanagement
  • I/O Ports
  • Expansion Slots
  • Power Supply
  • Operating System
  • Dimensions
  • Warranty

GPU Rackserver G14 - Epyc

  • AMD EPYC™ 7000 Series Processor
  • Support for 4x Tesla / GeForce
  • Aspeed AST2500
    option for dedicated GPU
  • up to 2TB DDR4-RAM 2666 MHz ECC Reg.
    16 Slots, 8 Channel Memory
  • 2x 2.5" Hot-Swap HDD / SSD
    2x SATA 6.0 GB/s, 2x NVMe 22110/2280
    embedded RAID 0,1,10 for 4x SATA 3.0 GB/s, HW-RAID optional
  • 2x 10 Gbit Network
    Intel X550-AT2 Ethernet Controller
  • IPMI 2.0 Management
    Power-On, Power-Off, Power-Reset over LAN
    KVM (Keyboard, Monitor und Mouse) Emulation over LAN
    Drive Mapping, virtual Drives over LAN

  • 2x USB 3.0 (front), 1x USB 3.0
    2x RJ45 10GbE LAN, 1x IPMI, 1x VGA
  • 4x PCIe 3.0 x16
    1x PCIe 3.0 x16 low Profile
  • 2x 1600W Redundant Power supply Hot Swap 80+ Platin Certified,
    100/240V, 50/60Hz

  • Windows 10, Windows Server 2016
    Linux: debian, SUSE, RedHat, CentOS, Ubuntu

  • 438 x 43.5 x 885mm WHD, 19" Chassis, 1U
    incl. 19" Rack Rails
  • 36 Month





Specifications



  • Processor
  • Chipset
  • GPU Support
  • Memory max.
  • Storage
  • Network
  • I/O Ports Front
  • I/O Ports Back
  • Expansion Slots
  • Power Supply
  • Operating Systems
  • Dimensions

GPU Rackserver G44

  • 2x Intel® Xeon™ SP Skylake Processors
    up to 56 Cores
  • Intel C621 Chipset
  • bis zu 4x NVIDIA GPUs, je nach Modell
  • up to 768GB DDR4-RAM
    2666 MHz ECC Registered
    12 Slots
  • 4x SATA 6.0 GB/s
    1x NVMe PCIe SSD
  • 2x 1000/100/10 Mbit Network
    2x Intel I210-AT Gigabit Ethernet Controller
  • 2x USB 3.0
  • 2x USB 3.1 Gen2, 4x USB 3.1 Gen1, 2x USB 2.0
    2x RJ45, 1x PS/2 Keyboard/Mouse Combo
    8 Channel HD Audio, 1x Optical S/PDIF out
  • 4x PCI-Express 3.0 x16, 3x PCI-Express 3.0 x8
  • 1200W/1700W power supply 80+ Platin
    100/240V, 50/60Hz
  • Windows 7, Windows 10, Windows Server 2012 R2, Windows Server 2016
    Linux: debian, SUSE, RedHat, CentOS, Ubuntu

  • 430 x 176 x 546 mm WHD





Specifications



  • Processor
  • Chipset
  • GPU MIC Support
  • Graphics
  • Memory max.
  • Storage
  • Network
  • Remotemanagement
  • I/O Ports
  • Expansion Slots
  • Power Supply
  • Operating System
  • Dimensions
  • Warranty

GPU Rackserver G14 - Dual

  • 2x Intel® Xeon™ Scalable Processor
  • Intel C621 Chipset
  • Support for 4x Tesla
  • ASPEED AST2500 BMC

  • up to 1.5TB DDR4-RAM 2666 MHz ECC
    12 Slots
  • 2x 2.5" Hot-Swap, 2x 2.5" Interal HDD / SSD
    2x NVMe 22110/2280
    4x SATA 6.0 GB/s,
    embedded RAID 0,1,5,10, HW-RAID optional
  • 2x 10Gbit Network
    Intel® X540 Dual Port Ethernet Controller
  • IPMI 2.0 Management
    Power-On, Power-Off, Power-Reset over LAN
    KVM (Keyboard, Monitor und Mouse) Emulation over LAN
    Drive Mapping, virtual Drives over LAN

  • 2x USB 3.0, 2x RJ45 10GBit LAN, 1x IPMI, 1x VGA

  • 4x PCIe 3.0 x16
    1x PCIe 3.0 x16 LP, 1x PCIe 3.0 x8 LP
  • 2x 2000W Redundant Power supply Hot Swap 80+ Platin Certified,
    100/240V, 50/60Hz

  • Windows 10, Windows Server 2016
    Linux: debian, SUSE, RedHat, CentOS, Ubuntu

  • 437 x 43 x 997 mm WHD, 19" Chassis, 1U
    incl. 19" Rack Rails
  • 36 Month
